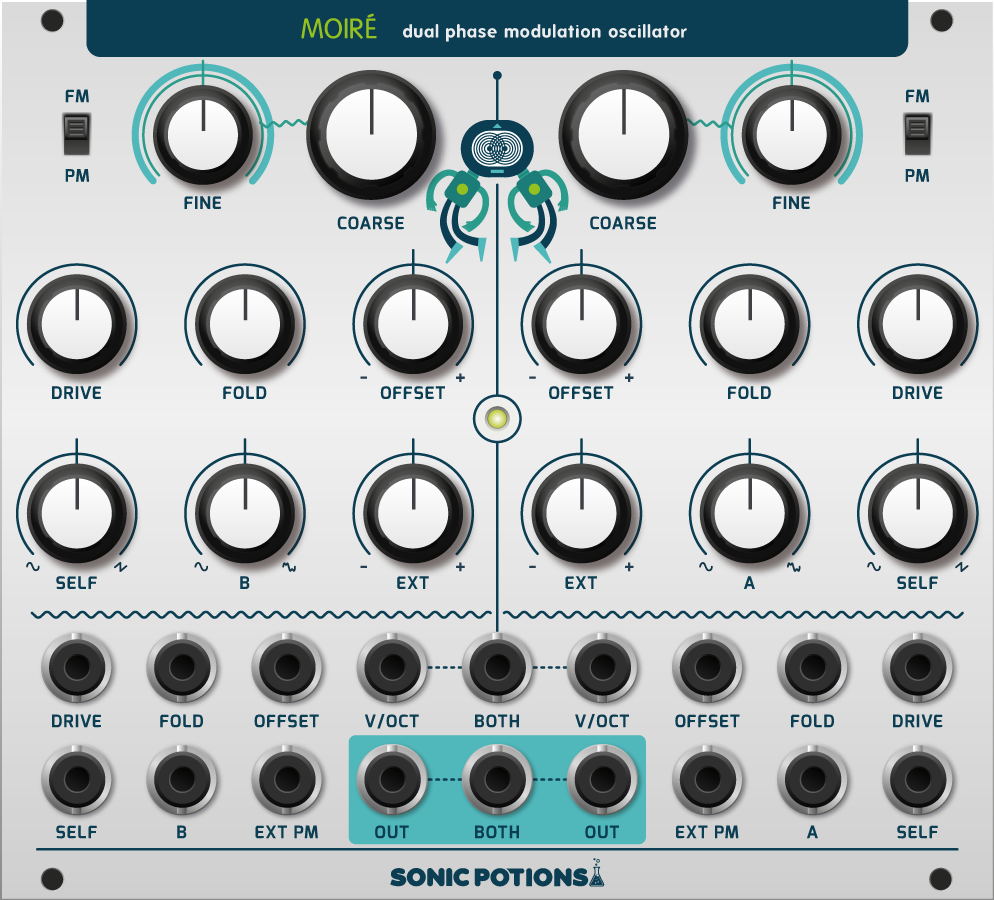

Moiré

Dual phase modulation oscillator

(preliminary information)



Moiré is a digital dual FM oscillator.

It comes with 2 completely identical oscillator cores that can also be used independently.
Each oscillator is based on a sine core that is fed through different waveshapers to alter the waveform:

  • a saw shaper (achieved through self modulation)
  • a rectange shaper (hard clipper with adjustable gain and offset)
  • a wavefolder with adjustable gain and offset



Further each oscillator can modulate the phase of the other oscillator for yamaha style FM synthesis.

Specs:

  • 28 HP
  • 16 bit / ~80kHz
  • All parameters CV controllable
  • ...





Moiré is played through a Manifold delay channel to stack up different layers of sound. Parameters of the oscillator are tweaked in realtime as it is played on a keyboard.



Directly connected to the recorder. Just wiggling some parameters on the oscillator
